Nissan Navara Murano Pathfinder Qashqai X-trail Airbag Coil Spring Ring | OEM Similar 25560JD003 | 25567ET025 | 25567JD003

Product Description:

Nissan Navara Murano Pathfinder Qashqai X-trail  Airbag Coil Spring Ring | OEM Similar 25560JD003 | 25567ET025 | 25567JD003

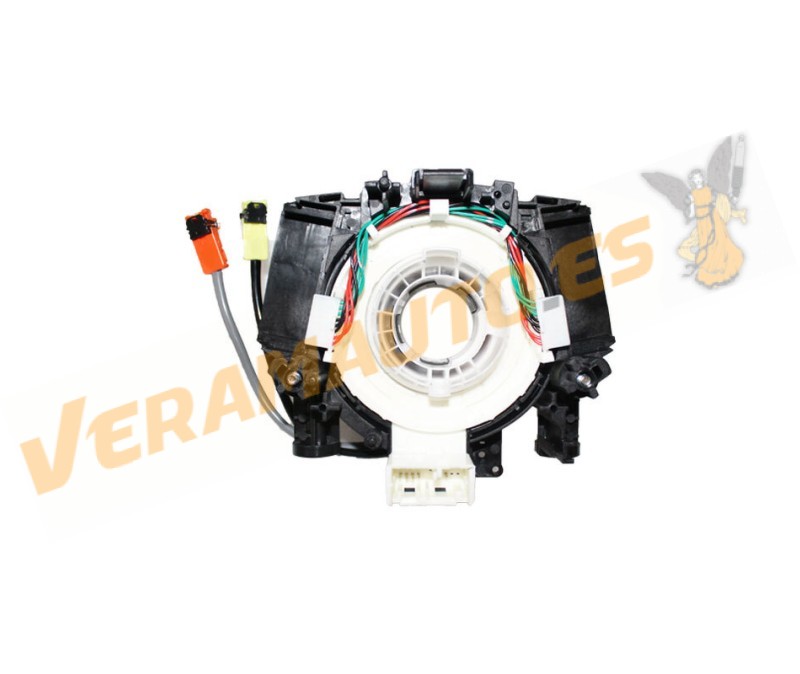

Connections | Check in Images:

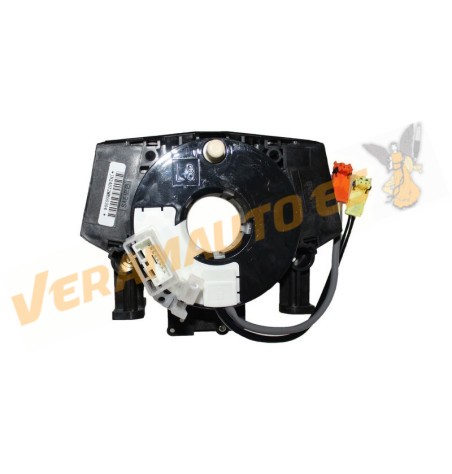

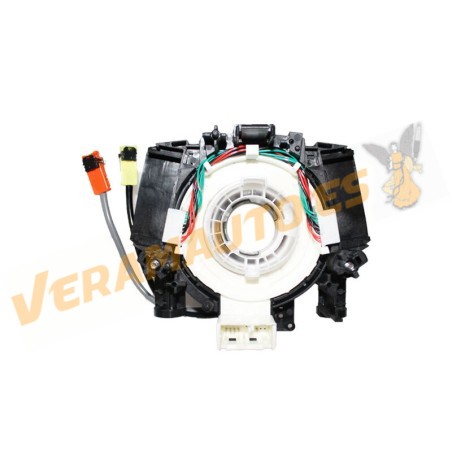

3 Airbag Connections (Steering Wheel):

2-pin (Yellow Wire) + 2-pin (Orange Wire) + 1 8-pin Airbag Coil Spring Connection

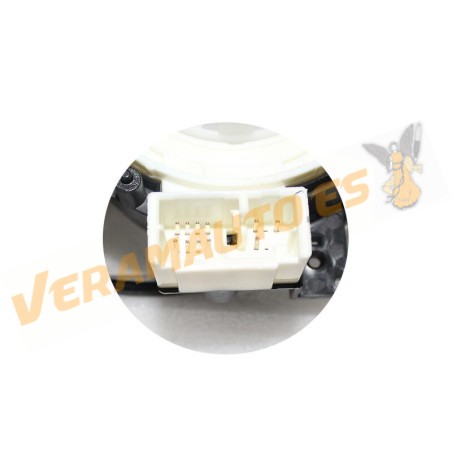

1 11-Pin Vehicle Wiring Connection

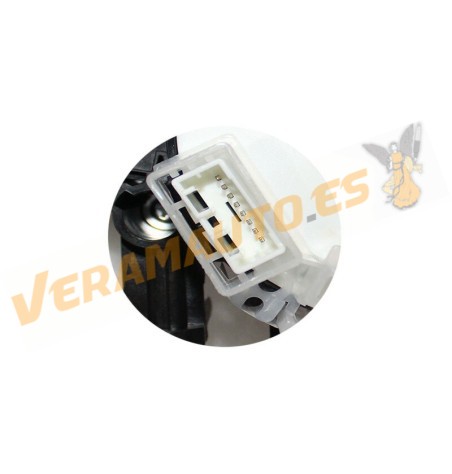

2 8-Pin Control Connections

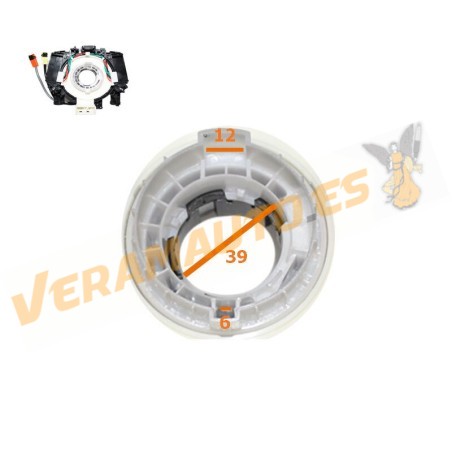

Important: Check the inner diameter measurements for the 39 mm steering wheel level sensor coupling and the 6 and 12 mm mounting pin measurements for the sensor before ordering.

Reference:

T36705

OEM Reference Similar:

25560JD003 | 25567ET025 | 25567JD003

Mounting Position:

Tie Rod

Compatible Models:

MURANO (Z50) de | 2003 | 2004 | 2005 | 2006 | 2007 |

NAVARA | PICK UP | PATHFINDER | FRONTIER (D40|R51) de | 2004 | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 |

PATHFINDER (R51) de | 2004 | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 |

QASHQAI (J10) de | 2007 | 2008 | 2009 | 2010 |

QASHQAI (J10) de | 2010 | 2011 | 2012 | 2013 | 2014 |

X-TRAIL (T31) de | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 |

Other Specifications:

Connections | Check in Images:

3 airbag connections (steering wheel):

2-pin (Yellow Wire) + 2-pin (Orange Wire) + 1 8-pin Airbag Spiral Connection

1 11-Pin Vehicle Wiring Connection

2 8-Pin Control Connections

Important: Before ordering, check the internal diameter measurements for the 39 mm steering wheel level sensor coupling and the 6 and 12 mm mounting pin measurements for said sensor.

Check compatibility with the original reference number and the attached files below.

THIS ELECTRICAL COMPONENT DOES NOT HAVE A WARRANTY OR RETURN.

ASSEMBLY INSTRUCTIONS

It is necessary to consult the vehicle's workshop manual to perform specialized service operations on this part.

If you do not have the service manual or lack the necessary skills to install this part, it is recommended that you consult a specialized technician.

Read and follow all instructions carefully and heed all warnings and alerts cited in the vehicle manual.

Airbag systems are subject to the explosives legislation in force in each country. The following safety instructions must be followed when handling them:

-Stop the engine, disconnect the battery, and wait for the electronic computer memory to be erased (at least 10 minutes). Start the engine and check that the instrument panel does not turn on.

-Disconnect the airbag module before any intervention in the vehicle's electrical circuit (ohmmeter, measuring instruments, etc.).

-Handle airbag modules with caution (avoid impacts, keep the opening space clear, and store the airbag modules facing upwards).

-Never disassemble the module or connect a measuring device to it.

- The airbag ring must be installed and removed from the center position (the tires must be in the straight-ahead position) and the steering wheel must be completely centered.

The ring is supplied in the center position and secured with a pin. The pin must be released after installation, releasing the spring.

Under no circumstances should the spring be released before installation; otherwise, if it is released before installation, the spring will be distorted beforehand, and it is very likely to come loose during the operation and become unusable.

If re-centering is required, follow the instructions below (applicable to most references):

Turn the rotor counterclockwise (left) to the stop. Turn approximately 3.0 turns clockwise (right) until the marks on the rotor are aligned.

Spiral Cable

The spiral cable connects the rigid steering column to the movable steering wheel. It ensures communication between the airbag control unit and the gas generator during the steering wheel's rotation. The conductive sheet is wound in such a way that it can follow the rotational movement of 2.5 turns in each direction.

It is important to be very careful when installing or removing this spiral cable. Ensure that the steering wheel is in the center position and that the wheels are also straight ahead. If the spiral cable has been removed, it cannot be rewound.

STEERING WHEEL CONTACTOR RING AIRBAG REEL THREADED SPRING

Our product images may vary depending on the manufacturer, but all technical characteristics and compatibilities indicated in the product specifications are maintained.
