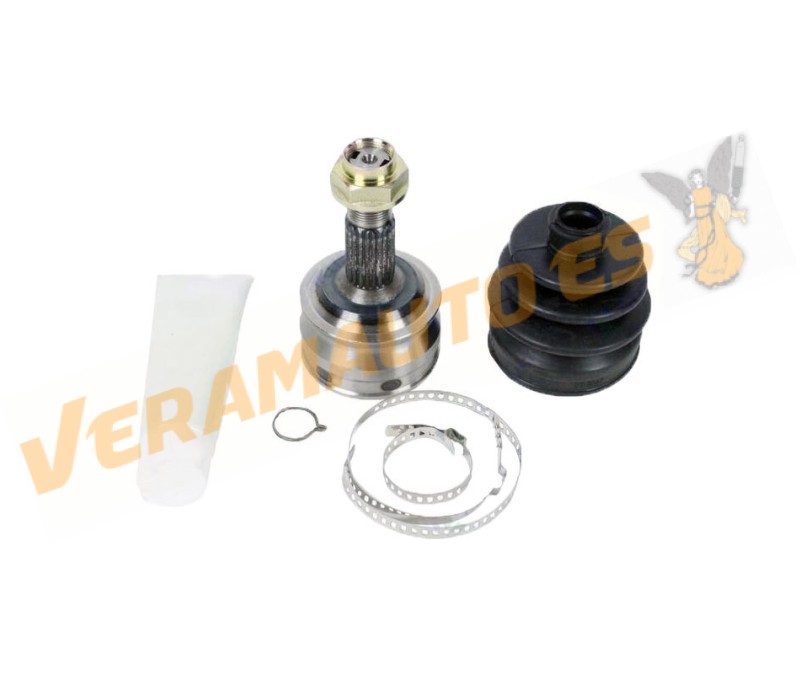

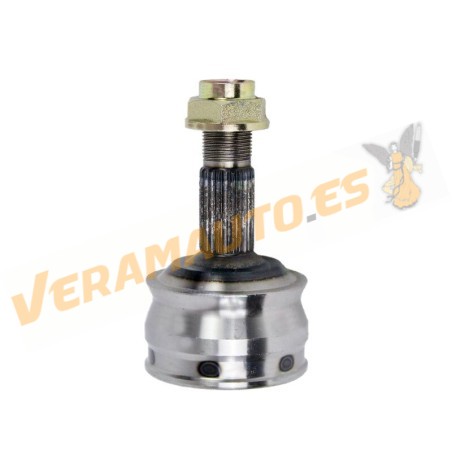

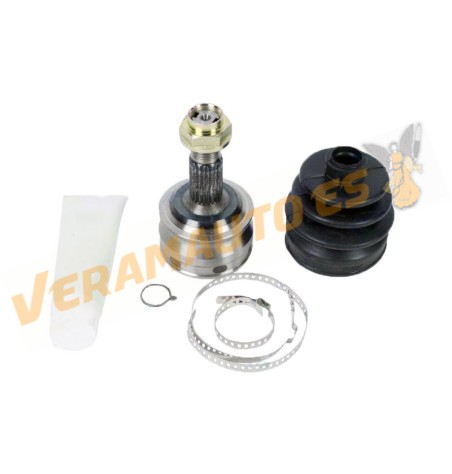

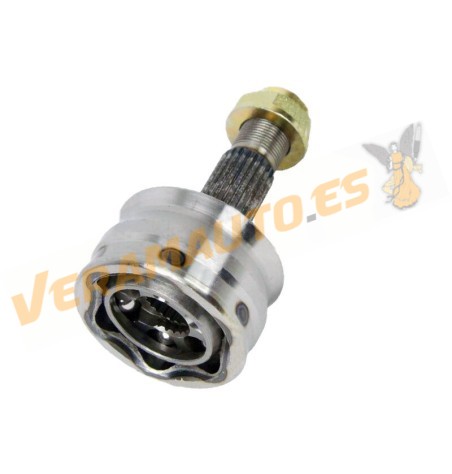

Fat Cinquecento (170) Seicento (187) Outer CV Joint | Driveshaft Joint Kit OE 7647244

€21.78
VAT included
Reference: 27100850A



It is advisable to check the OEM part number on most replacement parts.



Delivery Policy



After-Sales Service



About the Products

Product Description:

Outer CV Joint Fat Cinquecento (170) Seicento (187) | Propshaft Joint Kit OE 7647244 | 7647245 | 7720510 | 7736915 | 76472452A

Wheel-side Outer Teeth: 22 | Wheel-side Inner Teeth: 20 | Thread Size: M22x1.5 | Length [mm]: 124 | Joint Diameter [mm]: 46.8

Reference:

27100850A

Similar OEM Reference:

62-00-0001 | 607-067 | ECV055 | C120061 | 77-FI-1103 | 17020 | 7647244 | 7647245 | 7720510 | 7736915 | 76472452A | FI1067 | FI1144 | FI1067K | 3129K | GCO17010 | GI-0001 | 620001 | 3343300519 | 13-1197 | 6258 | 300866 | 301966 | 303651 | 12041 | 15-1067 | 7110010 | 2144980007 | 12-351703 | 512326 | CW-2518 | 75809S | 771002930 | 771079530 | 771075030 | VKJA5304 | OJK58.004 | 21230 | 22841 | 40-0110 | 141-04-038 |

Mounting Side:

Front Axle | Outer Wheel Side

Compatible Models:

CINQUECENTO (170) de | 1991 | 1992 | 1993 | 1994 | 1995 | 1996 | 1997 | 1998 |

SEICENTO (187) de | 1998 | 1999 | 2000 | 2001 | 2002 | 2003 | 2004 | 2005 |

SEICENTO (187) de | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 |

Modelo | Año Compatible CC | CV | KW Clave de Motor
FIAT| ||
CINQUECENTO (170_), 07.91-07.99| ||
1.1 Sporting (170AH)|10.94-01.98 1108|54|40 176 B2.000
0.7 (170AA)|12.91-01.96 704|31|23 170 A.000
0.9 i.e. (170AC)|07.91-09.94 903|41|30 170 A1.046
0.7 i (170AD)|07.94-01.98 704|30|22 170 A.046
0.9 i.e. S (170AF, 170CF)|07.91-07.99 899|40|29 1170 A1.000 | 1170 A1.046
0.9 (170AB)|07.91-12.93 903|41|30 170 A1.000
CINQUECENTO VAN (170_), 07.91-02.98| ||
1.1 iE (170AH)|10.94-02.98 1108|54|40 176 B2.000
0.9 iE (170CF)|07.91-02.98 899|39|29 1170 A1.046
SEICENTO / 600 (187_), 11.97-01.10| ||
0.9 (187AXA, 187AXA1A)|11.97-12.08 899|39|29 1170 A1.046
1.1 (187AXB, 187AXB1A, 187AXC1A02)|01.98-01.10 1108|54|40 176 B2.000 | 187 A1.000
SEICENTO / 600 Van (Furgoneta) / liftback (287_), 01.98-01.10| ||
0.9 (187AXA)|01.98-01.10 899|39|29 1170 A1.046
1.1 (187CXB/C)|01.98-01.10 1108|54|40 176 B2.000

Other Specifications:

External Teeth on Wheel Side: 22

Internal Teeth on Wheel Side: 20

Thread Size: M22x1.5

Length [mm]: 124

Joint Diameter [mm]: 46.8

Grease Lubrication

With Mounting Hardware

With Bellows

Requires assembly and disassembly by specialized personnel!

Warranty:

1-Year Warranty Against Manufacturing Defects.

Our product images may vary depending on the manufacturer, but all technical characteristics and compatibility indicated in the product specifications are maintained.

27100850A

Data sheet

Replacement parts category
Mechanics
Kind of replacement part
CV Joint
