Nissan Micra Murano Navara Note Juke Airbag Spring Ring | Similar to OEM B5554JP00A | B55541EL0A

Product Description:

Nissan Micra Murano Navara Note Juke Airbag Spring Ring | Similar to OEM B5554JP00A | B55541EL0A | B55543NL9A | B5554-KA48A | B5554KA48A | B5554-1EK0A | B55541EK0A | B5554-JP00A

JUKE (F15) from | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 |

MICRA (K13) from | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 |

Murano (Z51) DE | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014

Navara (D23) DE | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 |

NOTE (E12) DE | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 |

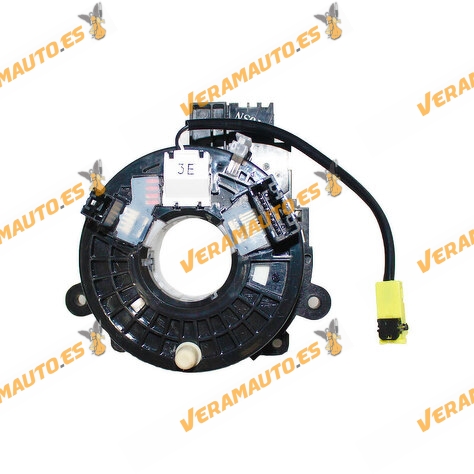

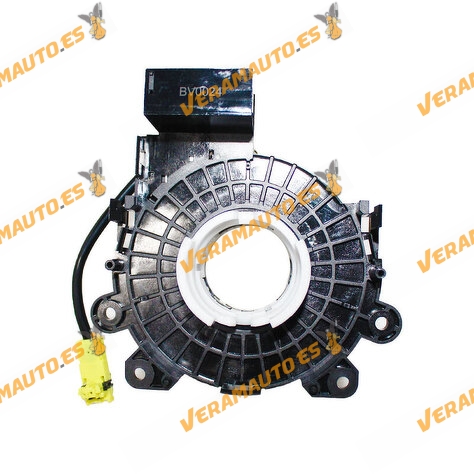

Connections | Check in Images:

3 Airbag Connections (Steering Wheel):

2-pin (Yellow) + 1 8-pin Airbag Pigtail Connection + 1 2-pin Airbag Pigtail Connection

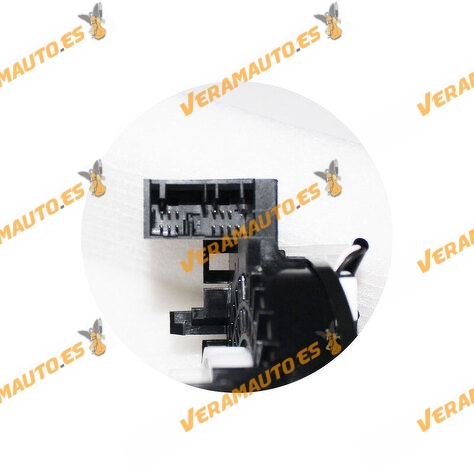

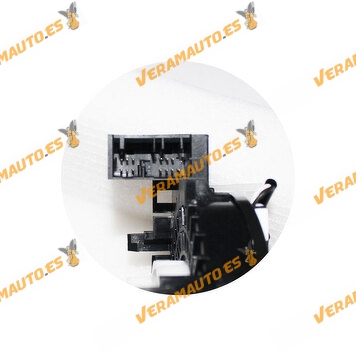

1 13-pin Vehicle Harness Connection

Check compatibility with original reference

Reference:

T36709

Similar OEM Reference:

B5554JP00A | B55541EL0A | B55543NL9A | B5554-KA48A | B5554KA48A | B5554-1EK0A | B55541EK0A | B5554-JP00A

Mounting Side:

Steering Wheel

Compatible Models:

JUKE (F15) de | 2010 | 2011 | 2012 | 2013 | 2014 |

JUKE (F15) de | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 |

MICRA (K13) de | 2010 | 2011 | 2012 | 2013 |

MICRA (K13) de | 2013 | 2014 | 2015 | 2016 | 2017 |

Murano(Z51) DE | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014

NAvara (D23) DE | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 |

NOTE (E12) DE | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 |

Other Specifications:

Connections | Check in Images:

3 airbag connections (steering wheel):

2-pin (Yellow) + 1 8-pin Airbag Spiral Connection + 1 2-pin Airbag Spiral Connection

1 13-pin Vehicle Installation Connection

Important: Before ordering, check the internal diameter measurements for the 39 mm steering wheel level sensor coupling and the 6 and 13 mm anchor pin measurements for said sensor.

Check compatibility with the original reference and attachments below.

THIS ELECTRICAL COMPONENT DOES NOT HAVE A WARRANTY OR RETURN.

ASSEMBLY INSTRUCTIONS

The airbag ring must be assembled and disassembled in the center position (the tires must be in the straight-ahead position) and the steering wheel must be completely centered.

The ring is supplied in the central position and is secured with a pin. The pin must be released after assembly, releasing the spring.

If centering is required, follow these instructions:

Turn the rotor counterclockwise (left) to the stop. Turn approximately 3.0 turns clockwise (right) until the marks on the rotor are aligned.

The spring must not be released before installation under any circumstances; otherwise, if released before assembly, the spring will be distorted beforehand, and it is very likely to detach during assembly and become unusable.

Spiral Cable

The spiral cable connects the rigid steering column to the movable steering wheel. It ensures communication between the airbag control unit and the gas generator during the steering wheel's rotational motion. The conductive foil is wound in such a way that it is capable of following the rotational motion of 2.5 turns in each direction.

It is important to be very careful when installing or removing this spiral cable. Ensure that the steering is in the center position and that the wheels are also straight. If the spiral cable has been removed, it cannot be rewound.

The supplied products must be used only for their intended purpose. Assembly must be carried out by qualified personnel. The products are delivered without assembly instructions.
