Airbag Spring Ring for Toyota Camry (XC30) from 12-2001 to 08-2006 | Similar to OEM 8430602110

Product Description:

Airbag Spring Ring for Toyota Camry (XC30) from 12-2001 to 08-2006 | Similar to OEM 8430602110 | 8430602140 | 8430605050 | 8430606030 | 8430630090 | 8430633080 | 8430650180 | 8430664010

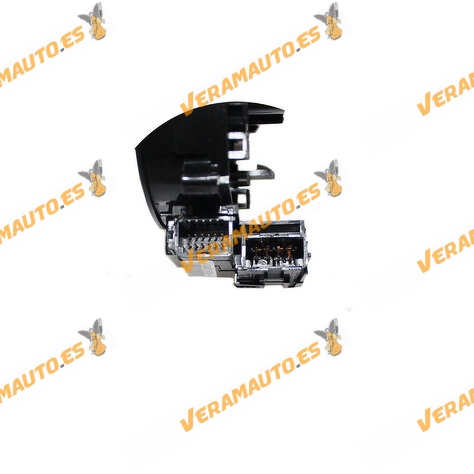

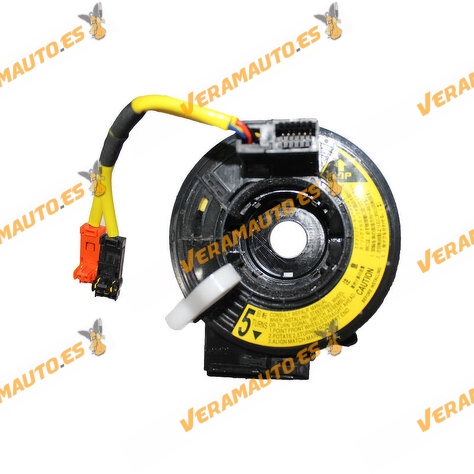

3 Steering Wheel Airbag Connections: 1 12-Pin Connection + 1 2-Pin Orange Cable + 1 2-Pin Black Cable

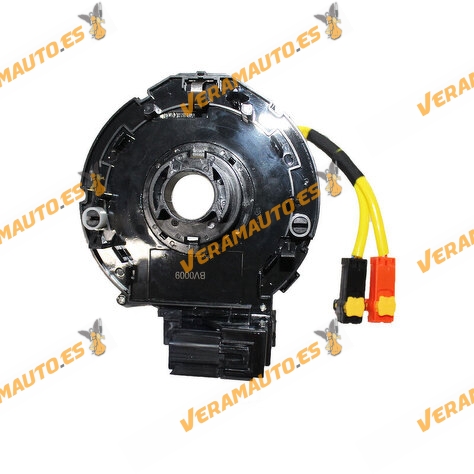

2 Vehicle Installation Connections: 1 12-Pin Connection + 1 4-Pin Connection and Terminal

Reference:

T36053

Similar OEM Reference:

8430602110 | 8430602140 | 8430605050 | 8430606030 | 8430630090 | 8430633080 | 8430650180 | 8430664010

Mounting Position:

Tie Rod

Compatible Models:

Toyota

CAMRY (XC30) DE | 2001 | 2002 | 2003 | 2004 | 2005 | 2006 |

Other Specifications:

3 Steering Wheel Airbag Connections: 1 12-Pin Connection + 1 2-Pin Orange Cable + 1 2-Pin Black Cable

2 Vehicle Installation Connections: 1 12-Pin Connection + 1 4-Pin Connection and Terminal

Check compatibility with the original part number and attachments below.

THIS ELECTRICAL COMPONENT DOES NOT HAVE A WARRANTY OR RETURN.

ASSEMBLY INSTRUCTIONS

It is necessary to consult the vehicle's workshop manual to perform specialized service operations on this part.

If you do not have the service manual or do not have the necessary skills to install this part, it is recommended that you consult a specialized technician.

Read and follow all instructions carefully and heed all warnings and alerts cited in the vehicle manual.

Airbag systems are subject to the explosives legislation in force in each country. The following safety instructions must be followed when handling them:

-Stop the engine, disconnect the battery, and wait for the electronic computer memory to be erased (at least 10 minutes). Start the engine and check that the instrument panel does not turn on.

-Disconnect the airbag module before any intervention in the vehicle's electrical circuit (ohmmeter, measuring instruments, etc.).

-Handle airbag modules with caution (avoid impacts, keep the opening space clear, and store the airbag modules facing upwards).

-Never disassemble the module or connect a measuring device to the module itself.

-The airbag ring must be installed and removed from the center position (the tires must be in the straight-ahead position) and the steering wheel must be completely centered.

The ring is supplied in the central position and secured with a pin. The pin must be released after assembly, releasing the spring.

Under no circumstances should the spring be released before installation; otherwise, if it is released before assembly, the spring will be distorted beforehand, and it is very likely to come loose during the operation and become unusable.

If re-centering is required, follow the instructions below (valid for most references):

Turn the rotor counterclockwise (left) to the stop. Turn approximately 3.0 turns clockwise (right) until the marks on the rotor are aligned.

- SPIRAL THREAD AIRBAG REEL CONTACTOR RING -

The spiral cable connects the rigid steering column to the movable steering wheel. It ensures communication between the airbag control unit and the gas generator during the steering wheel's rotation. The conductive film is wound in such a way that it can follow the rotational motion of 2.5 turns in each direction.

It is important to be very careful when installing or disassembling this spiral cable. Ensure that the steering is in the center position and that the wheels are also straight. If the spiral cable has been disassembled, it cannot be rewound.
