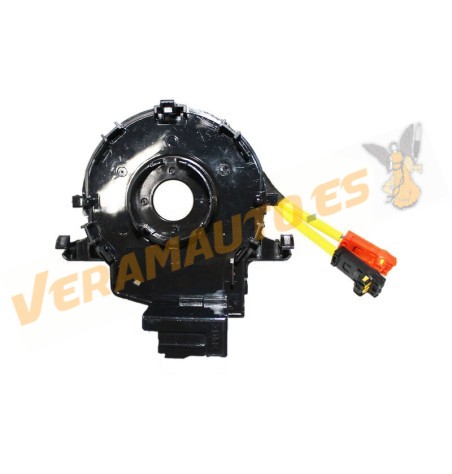

Airbag Spiral Ring for Toyota Land Cruiser Prius RAV 4 Lexus OEM Similar to 8430606140 | 8430648030

Product Description:

Airbag Coil Spring for Toyota Land Cruiser Prius RAV 4 Lexus OEM Similar 8430606140 | 8430648030

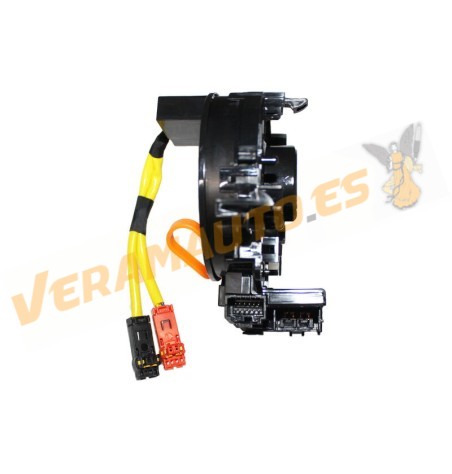

3 Connections to Steering Wheel Airbag: 1 4-pin + 1 10-pin + 2 2-pin Cables each

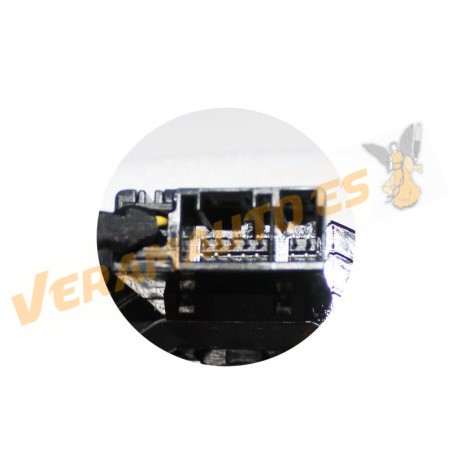

2 Connections to Vehicle Installation: 1 12-pin + 1 4-pin and Terminal

Reference:

T36021

Similar OEM Reference:

8430606140 | 8430648030

Mounting Position:

Tie Rod

Compatible Models:

LEXUS

LEXUS RX (AL10) de 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 |

LEXUS RX (AL20) de | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |

TOYOTA

LAND CRUISER (FJ150) de | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 |

LAND CRUISER (FJ150) de | 2014 | 2015 | 2016 | 2017 |

PRIUS (ZVW30|XW30) de | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 |

RAV 4 (XA40) de | 2012 | 2013 | 2014 | 2015 | 2016 |

RAV 4 (XA40) de | 2016 | 2017 | 2018 |

Other Specifications:

3 Steering Wheel Airbag Connections: 1 4-pin + 1 10-pin + 2 2-pin Cables each

2 Vehicle Installation Connections: 1 12-pin + 1 4-pin and Terminal

Check compatibility with the original reference and attachments below.

THIS ELECTRICAL COMPONENT DOES NOT HAVE A WARRANTY OR RETURN.

ASSEMBLY INSTRUCTIONS

Refer to the vehicle's workshop manual to perform specialized service operations on this part.

If you do not have the service manual or lack the necessary skills to install this part, it is recommended that you consult a specialized technician.

Read and follow all instructions carefully and heed all warnings and alerts cited in the vehicle manual.

Airbag systems are subject to the explosives legislation in force in each country. The following safety instructions must be followed when handling them:

-Stop the engine, disconnect the battery, and wait for the electronic computer memory to be erased (at least 10 minutes). Start the engine and check that the instrument panel does not turn on.

-Disconnect the airbag module before any intervention in the vehicle's electrical circuit (ohmmeter, measuring instruments, etc.).

-Handle airbag modules with caution (avoid impacts, keep the opening space clear, and store the airbag modules facing upwards).

-Never disassemble the module or connect a measuring device to it.

- The airbag ring must be installed and removed from the center position (the tires must be in the straight-ahead position) and the steering wheel must be completely centered.

The ring is supplied in the center position and secured with a pin. The pin must be released after installation, releasing the spring.

Under no circumstances should the spring be released before installation; otherwise, if it is released before installation, the spring will be distorted beforehand, and it is very likely to come loose during the operation and become unusable.

If re-centering is required, follow the instructions below (applicable to most references):

Turn the rotor counterclockwise (left) to the stop. Turn approximately 3.0 turns clockwise (right) until the marks on the rotor are aligned.

- AIRBAG REEL CONTACTOR RING SPIRAL THREAD -

The spiral cable connects the rigid steering column to the movable steering wheel. It ensures communication between the airbag control unit and the gas generator during the steering wheel's rotation. The conductive film is wound in such a way that it can follow the rotational movement of 2.5 turns in each direction.

It is important to be very careful when installing or removing this spiral cable. Ensure that the steering wheel is in the center position and that the wheels are also straight ahead. If the spiral cable has been removed, it cannot be rewound.
